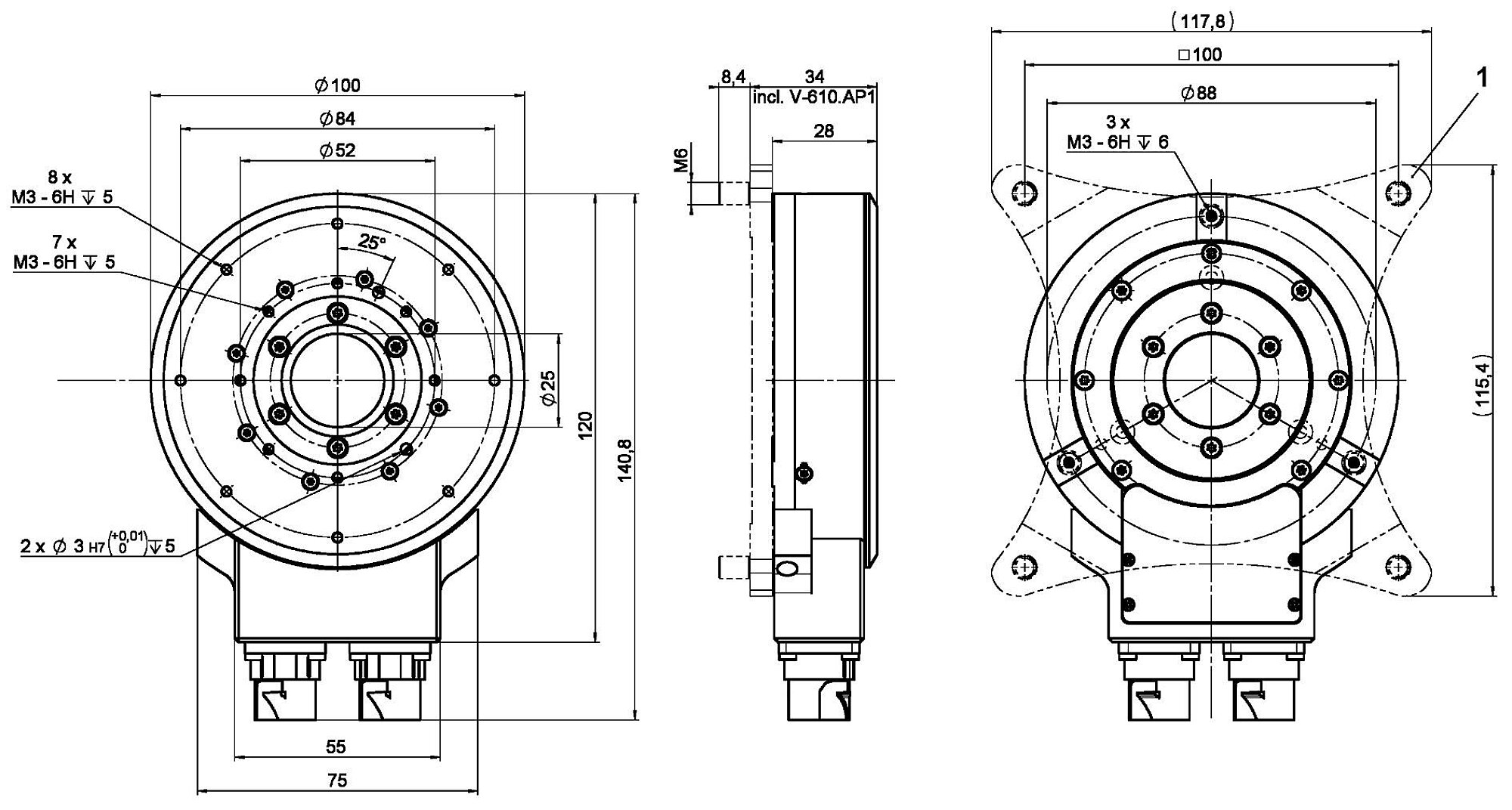

Compact PIMag® rotation stage, Ø 25 mm clear aperture, ironless 3-phase torque motor, incremental angle measuring system with sin/cos signal transmission

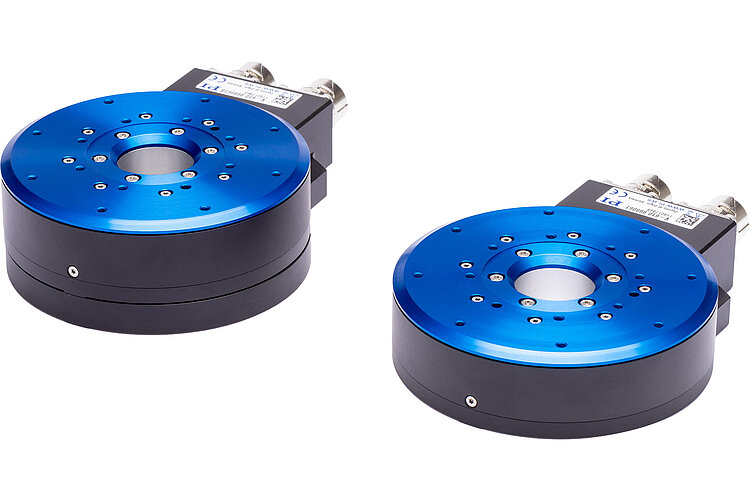

V-610 Compact PIMag® Rotation Stage
Flat Design at High-Torque for Loads up to 2 kg
- Flat and compact design
- Clear aperture for transmitted-light applications
- Optional holding brake
- Ironless PIMag® torque motor developed in-house for high drive torque
PIMag® torque motor
Torque motors are electromagnetic direct drives. They dispense with mechanical components in the drivetrain and transfer the drive force directly and friction-free to the motion platform. The drives reach high velocities and accelerations. Ironless motors are particularly suitable for positioning tasks with the highest demands on precision because there is no undesirable interaction with the permanent magnets. This allows smooth running even at the lowest velocities and at the same time, there is no vibration at high velocities. Nonlinearity in control behavior is avoided and any position can be controlled easily. The drive force can be set freely.
PIMag®
PI develops proprietary magnetic motors if positioning systems need to achieve specific performance characteristics that cannot be reached by using drive components currently available on the market, for example, to achieve a high force density or a compact design. The motors developed in-house are identified by the PIMag® brand name.
Application fields
Sample inspection. Precision microassembly. Research. Biotechnology. Semiconductor technology. Measuring technology. Automation.
Specifications
Specifications
Motion | V-610.998061 | V-610.998061B | Tolerance |
---|---|---|---|
Active axes | θZ | θZ | |
Rotation range in θZ | 360 ° | 360 ° | |
Maximum angular velocity in θZ, unloaded | 500 min⁻¹ | 500 min⁻¹ | |
Positioning | V-610.998061 | V-610.998061B | Tolerance |
Integrated sensor | Incremental angle-measuring system | Incremental angle-measuring system | |
Unidirectional repeatability in θZ | 4 µrad | 4 µrad | typ. |
Bidirectional repeatability in θZ | ± 88 µrad | ± 88 µrad | typ. |
Minimum incremental motion in θZ | 2 µrad | 2 µrad | typ. |
Sensor signal | Sin/cos, 1 V peak-peak | Sin/cos, 1 V peak-peak | |
Sensor signal periods / U | 1845 | 1845 | |
Sensor resolution, rotational | 9 µrad | 9 µrad | |
Reference switch | 1 / revolution, differential pulse over one sensor signal period, 1 V peak-peak | 1 / revolution, differential pulse over one sensor signal period, 1 V peak-peak | |
Drive Properties | V-610.998061 | V-610.998061B | Tolerance |
Drive type | Ironless 3-phase torque motor | Ironless 3-phase torque motor | |
Nominal voltage | 48 V | 48 V | max. |
Nominal current, RMS | 2.05 A | 2.05 A | typ. |
Peak current, RMS | 5 A | 5 A | typ. |
Drive torque counterclockwise in θZ | 0.49 N·m | 0.49 N·m | max. |
Drive torque clockwise in θZ | 0.49 N·m | 0.49 N·m | max. |
Peak torque counterclockwise in θZ | 1.25 N·m | 1.25 N·m | max. |
Peak torque clockwise in θZ | 1.25 N·m | 1.25 N·m | max. |
Torque constant | 0.24 N·m/A | 0.24 N·m/A | typ. |
Resistance phase-phase | 3 Ω | 3 Ω | typ. |
Inductance phase-phase | 0.5 mH | 0.5 mH | |
Back EMF, phase-phase, rotational | 25.1 V/kRPM | 25.1 V/kRPM | max. |
Number of pole pairs | 12 | 12 | |
Mechanical Properties | V-610.998061 | V-610.998061B | Tolerance |
Bearing type | Crossed roller bearings | Crossed roller bearings | |
Moved mass in θZ, unloaded | 380 g | 400 g | ±5 % |
Moment of inertia in θZ, unloaded | 411.84 kg·mm² | 418.23 kg·mm² | ±20% |
Permissible push force in Y | 6 N | 6 N | max. |
Permissible push force in Z | 20 N | 20 N | max. |
Overall mass | 705 g | 965 g | ±5 % |
Mass without cable | 630 g | 870 g | |
Material | Aluminum, anodized | Aluminum, anodized | |
Holding brake | Electromagnetic safety brake | ||
V-610.998061 | V-610.998061B | Tolerance | |
Connector | M15 | M15 | |
Sensor connector | M15 | M15 | |
Recommended controllers / drivers | C-891 (single axis) C-885 with C-891.11C885 (up to 20 axes) ACS modular controller | C-891 (single axis) C-885 with C-891.11C885 (up to 20 axes) ACS modular controller | |
Operating temperature range | 10 to 50 °C | 10 to 50 °C |
Travel range: ±5 turns with C-891 controller / controller module
Nominal torque/current and peak torque/current: Depending on the surface. Specification based on mounting on an aluminum surface, with 600 mm × 300 mm × 12.7 mm (l × w × h).
C-891/C-885: Separate connection cable required for motor and sensor connection respectively
Downloads
Datasheet
Documentation
User Manual V610UM0001
V-610.998061 PIMAG® RotationStage
User Manual V610UM0002
V-610.998061 PIMAG® RotationStage
3-D Models
V-610 3-D model
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

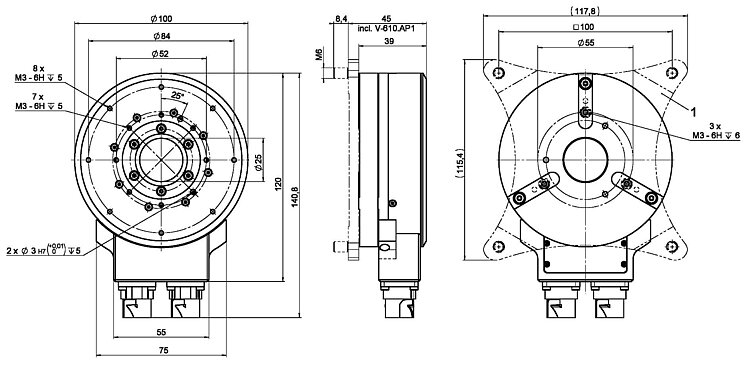

Compact PIMag® rotation stage, Ø 25 mm clear aperture, ironless 3-phase torque motor, incremental angle measuring system with sin/cos signal transmission, holding brake
