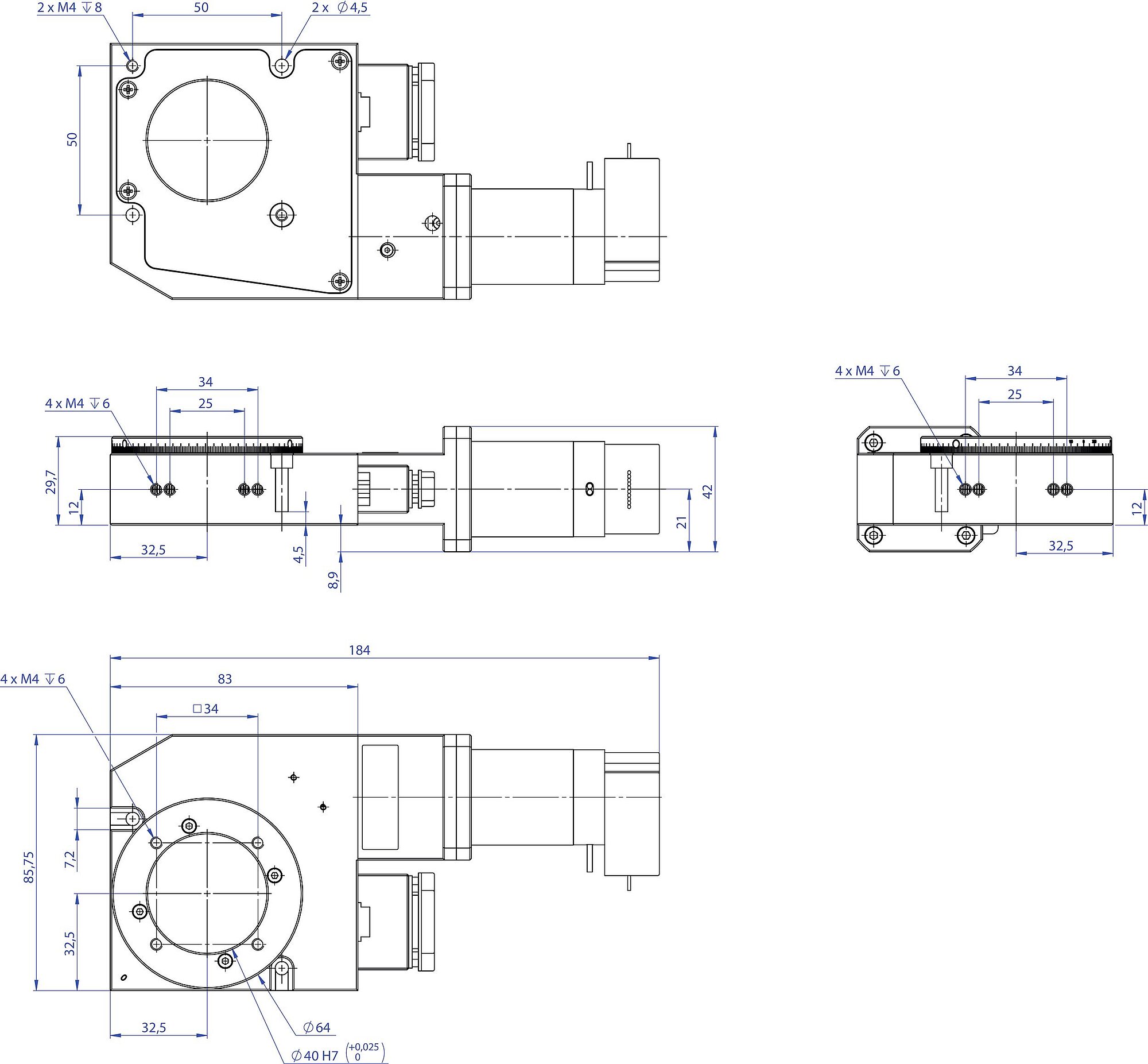

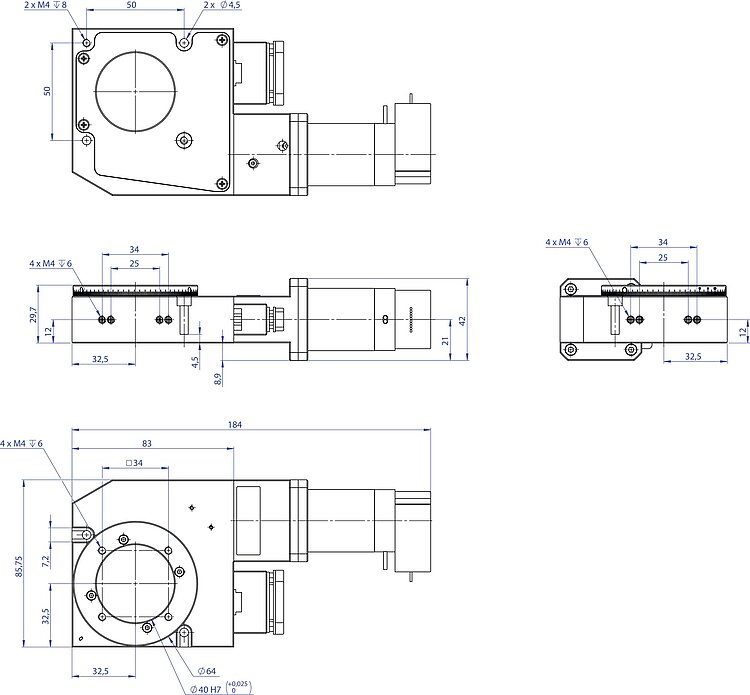

DT-80 Rotation stage, 40 mm Ø aperture, DC motor, >360° rotation range, mechanical reference switch

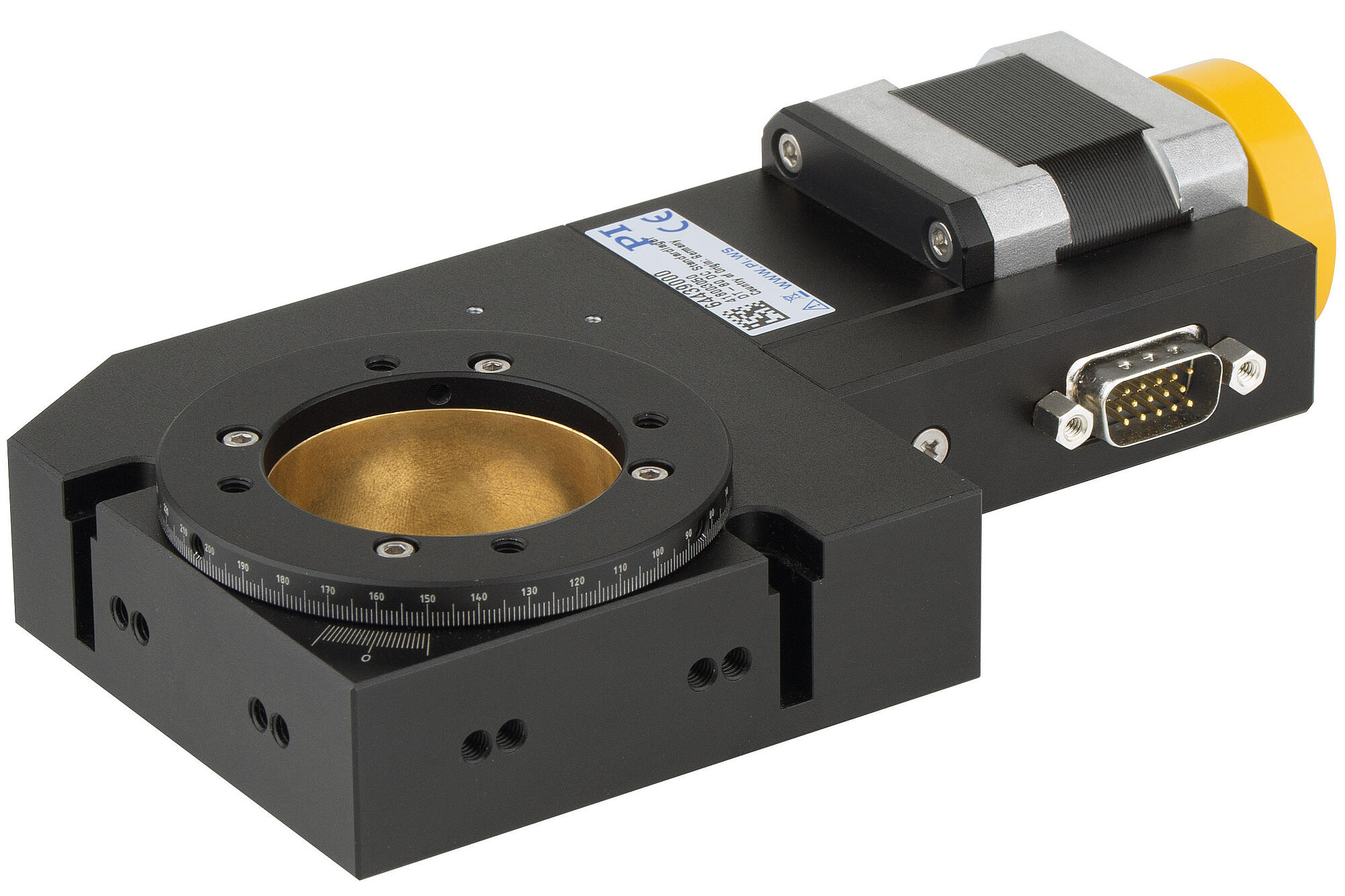

DT-80 Compact Rotation Stage
Large Clear Aperture
- Unlimited travel range
- Repeatability to 175 µrad
- Maximum velocity 40°/s
- Reference switch
DT-80 Compact Rotation Stage
Product Description
Specifications
Downloads
Quote / Order
Precision-class rotation stage
Worm drive with high gear ratio for precision positioning. Large aperture with 40 mm Ø. Mechanical reference switch.
Drive types
- DC servo motor with rotary encoder on the motor shaft
- Stepper motor
Application fields
Precision microassembly. Research. Automation.
Specifications
Specifications
Motion | 64439100 | 64439200 | Tolerance |
---|---|---|---|
Active axes | θZ | θZ | |
Rotation range in θZ | 360 ° | 360 ° | |
Maximum angular velocity in θZ, unloaded | 40 °/s | 30 °/s | |
Linear crosstalk in X with motion in θZ | ± 30 µm | ± 30 µm | typ. |
Linear crosstalk in Y with motion in θZ | ± 30 µm | ± 30 µm | typ. |
Linear crosstalk in Z with motion in θZ | ± 30 µm | ± 30 µm | typ. |
Rotational crosstalk in θX with motion in θZ | ± 100 µrad | ± 100 µrad | typ. |
Rotational crosstalk in θY with motion in θZ | ± 100 µrad | ± 100 µrad | typ. |
Positioning | 64439100 | 64439200 | Tolerance |
Integrated sensor | Incremental rotary encoder | ||
Unidirectional repeatability in θZ | 175 µrad | 175 µrad | typ. |
Bidirectional repeatability in θZ | ± 3491 µrad | ± 3491 µrad | typ. |
Minimum incremental motion in θZ | 69.8 µrad | 69.8 µrad | typ. |
Sensor resolution | 2000 Cts./rev. | ||
Reference switch | Mechanical, N/C contact, to 30 V, NPN | Mechanical, N/C contact, to 30 V, NPN | |
Drive Properties | 64439100 | 64439200 | Tolerance |
Drive type | DC motor | 2-phase stepper motor | |
Nominal voltage | 24 V | 24 V | |
Peak voltage | 48 V | 48 V | |
Nominal current, RMS | 1.3 A | 1.7 A | typ. |
Drive torque counterclockwise in θZ | 0.1 N·m | 0.1 N·m | max. |
Drive torque clockwise in θZ | 0.1 N·m | 0.1 N·m | max. |
Resistance phase-phase | 5 Ω | 1.7 Ω | typ. |
Inductance phase-phase | 0.54 mH | 3.3 mH | |
Motor resolution | 200 Full steps/rev. | ||
Mechanical Properties | 64439100 | 64439200 | Tolerance |
Bearing type | Ball bearings | Ball bearings | |
Worm gear reduction | 180 | 180 | |
Permissible push force in X | 10 N | 10 N | max. |
Permissible push force in Y | 10 N | 10 N | max. |
Permissible push force in Z | 20 N | 20 N | max. |
Permissible torque in θx | 5 N·m | 5 N·m | max. |
Permissible torque in θY | 5 N·m | 5 N·m | max. |
Overall mass | 800 g | 800 g | |
Material | Anodized aluminum | Anodized aluminum | |
Miscellaneous | 64439100 | 64439200 | Tolerance |
Connector | HD D-sub 15-pin (m) | HD D-sub 15-pin (m) | |
Recommended controllers / drivers | C-863 (single-axis) C-884 (up to 6 axes) C-885 with C-863.20C885 (up to 40 axes) Modular ACS controller | C-663.12 (single-axis) C-885 with C-663.12C885 (up to 20 axes) Modular ACS controller | |
Operating temperature range | 5 to 40 °C | 5 to 40 °C |
Downloads
Product Note
Datasheet
Documentation
Documentation
User Manual DT-80
Compact Rotation Stage
Version / Date
2019-07-19
pdf - 687 KB
Version / Date
2019-07-19
pdf - 722 KB
3-D Models
3-D Models
DT-80 3-D model
zip - 3 MB
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
64439100
64439200

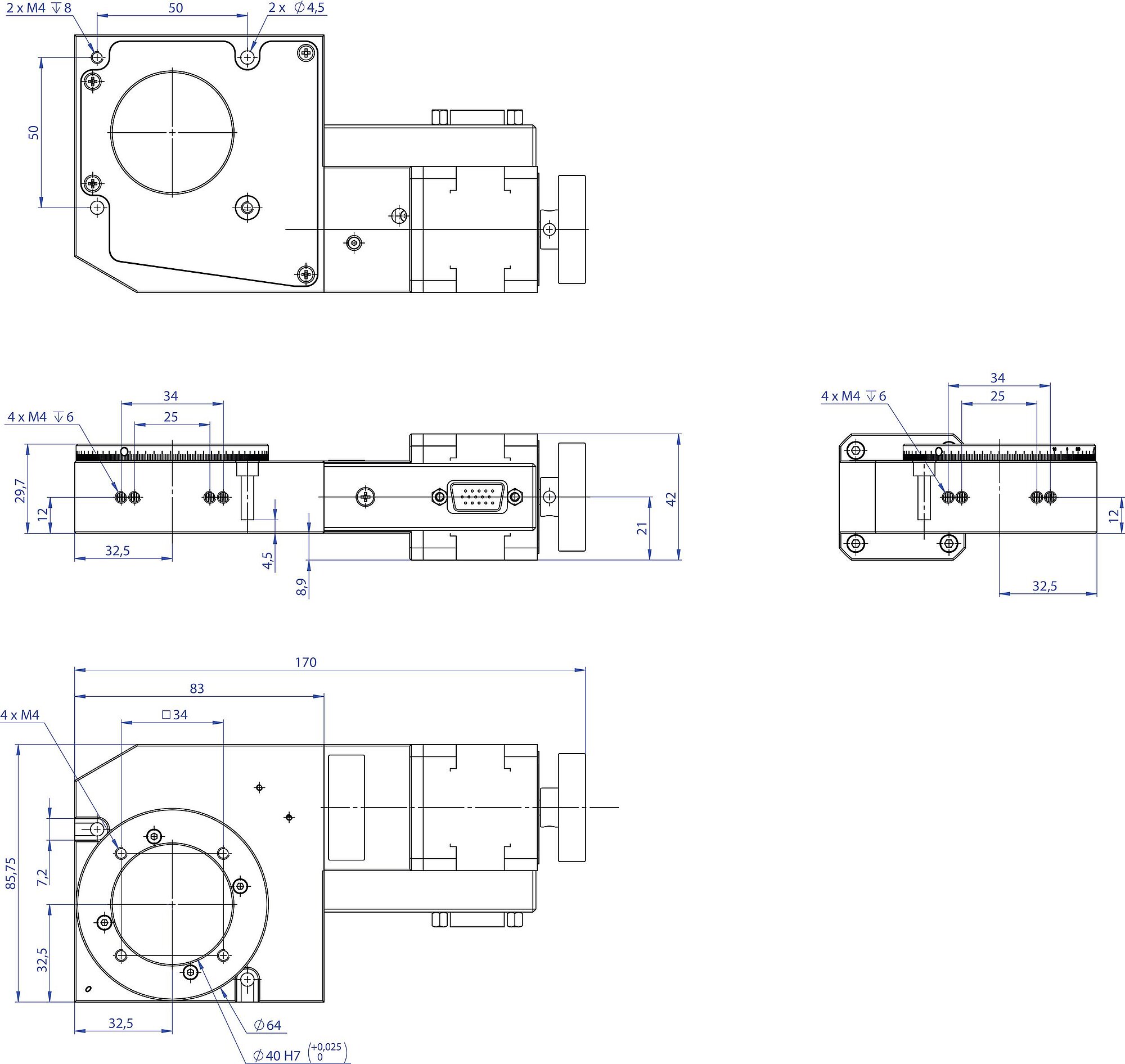

DT-80 Rotation stage, 40 mm Ø aperture, stepper motor, >360° rotation range, mechanical reference switch
